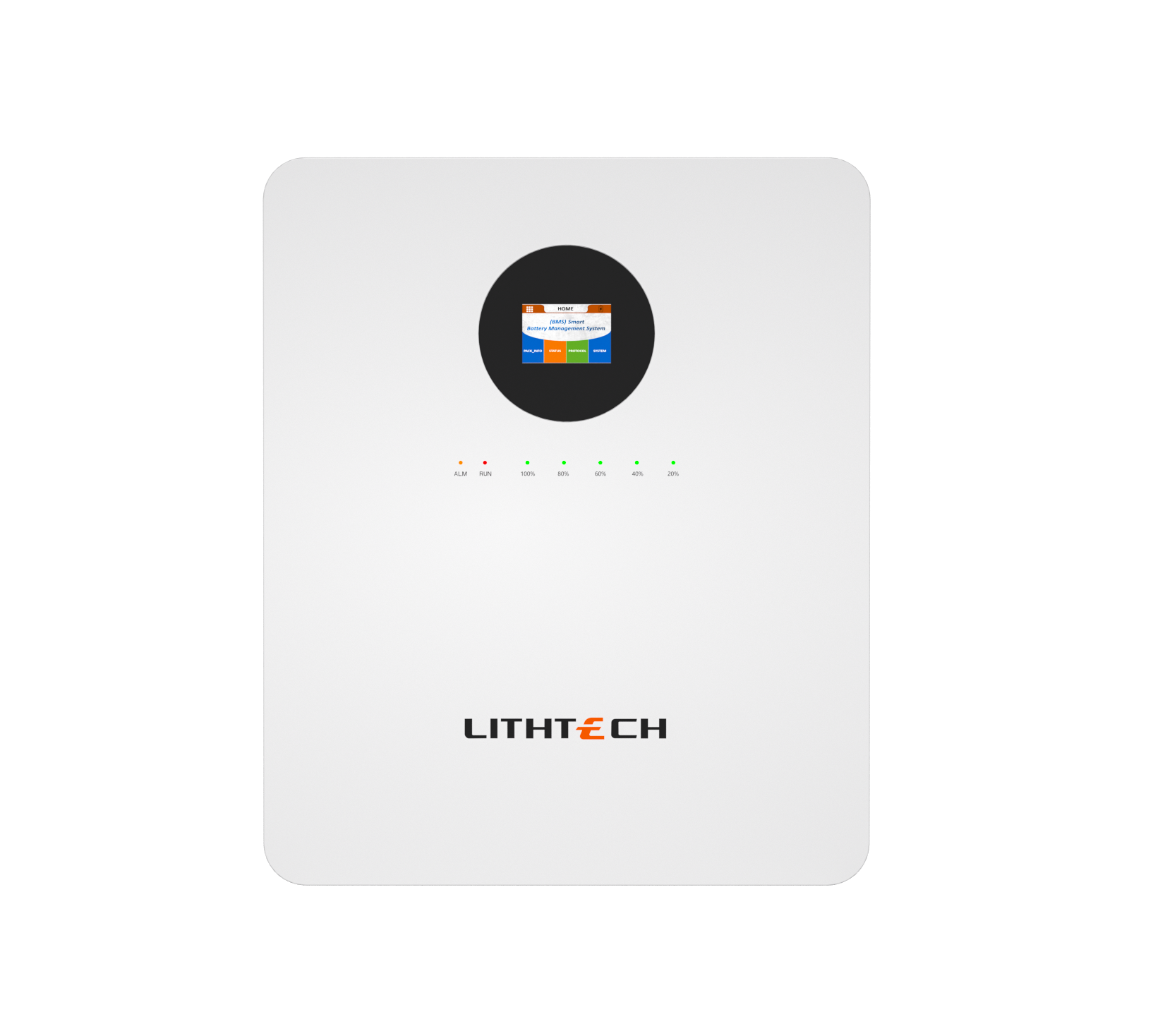

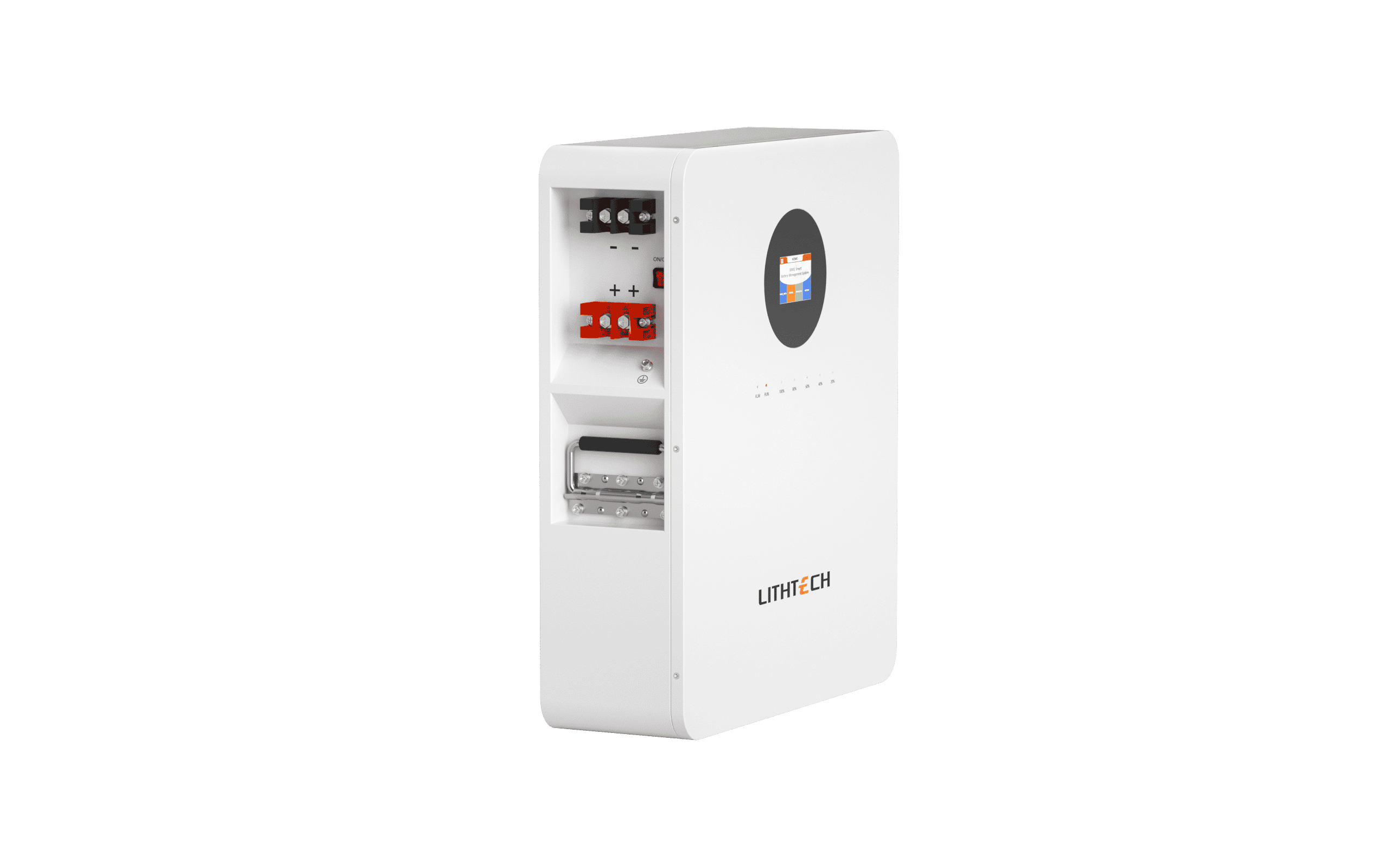

TR4000WX
| Electrical Characteristics | Nominal Voltage | 25.6Volt |
| Nominal Capacity | 200Ah | |
| Energy | 5120Wh | |
| Internal Resistance | 45≤mΩ | |
| Cycle Life | 6000 Cycles | |
| Months Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charge | Charge Voltage | 28.4V~29.2V±0.2V |
| Charger Current | 200A | |
| Max.Charge Current | 100A | |
| Standard Discharge | Discharge Current | 100A |
| Max. Continuous Current | 200A | |
| Max.Pulse Current | 260A(＜3S） | |
| Disxcharge Cut-off Voltage | 17.6V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |

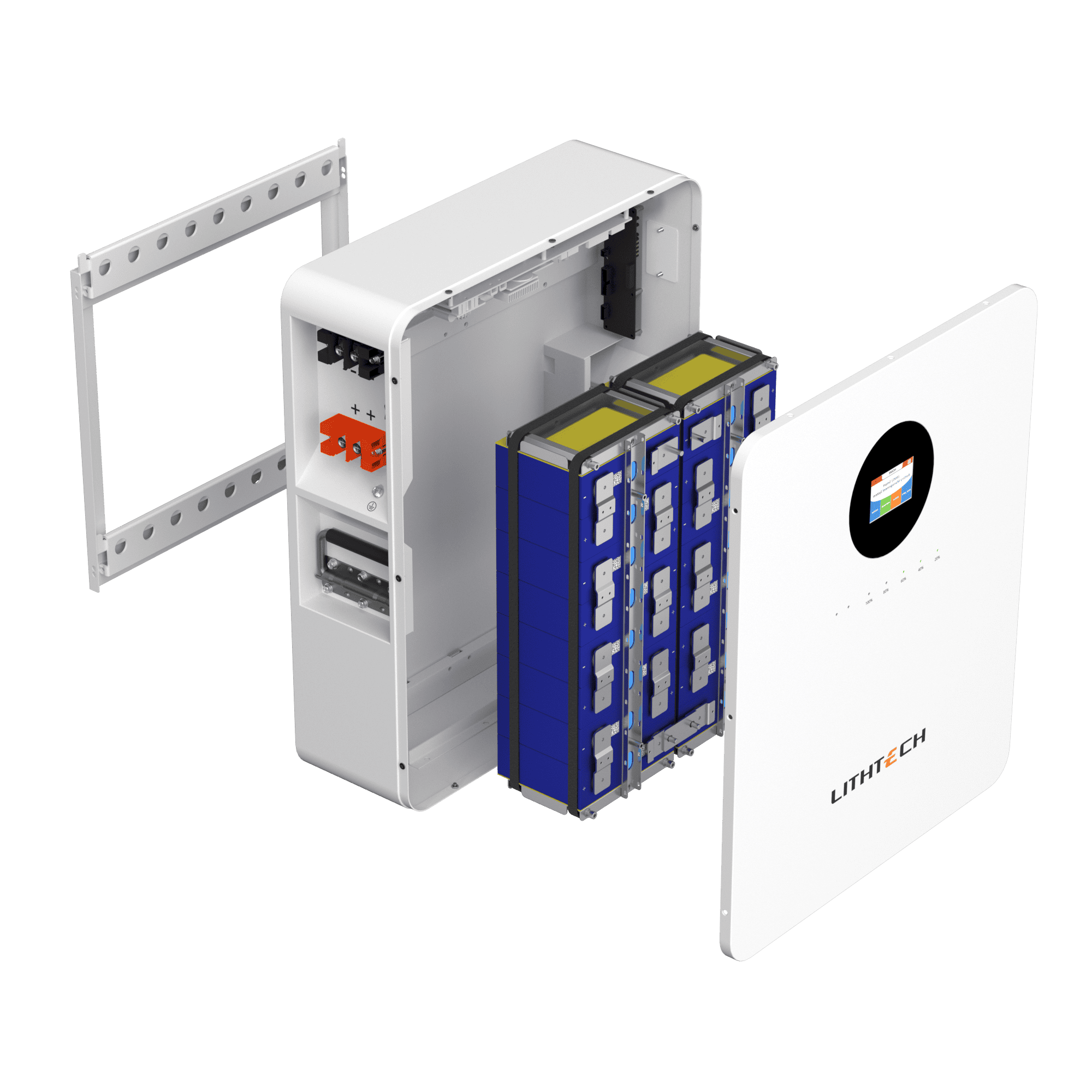

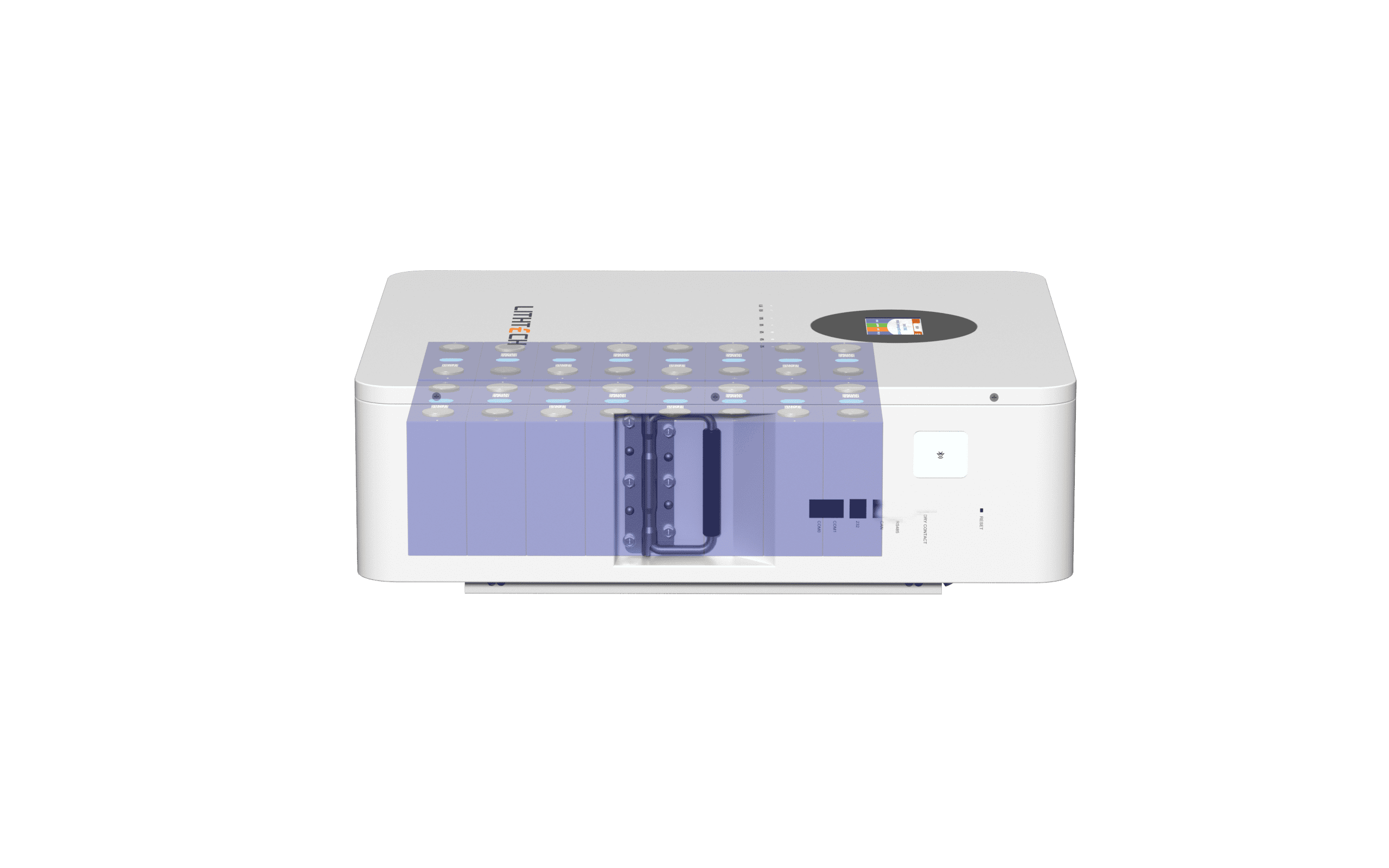

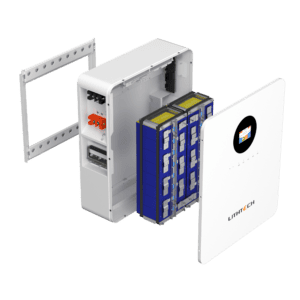

| Mechanical | Cell & Method | LFP/AL-100AH, 8S2P Prismatic |
| Plastic Case | Steel | |
| Dimension(L*W*H) | 600*500*185.5mm | |
| Weight | Approx.53kg | |

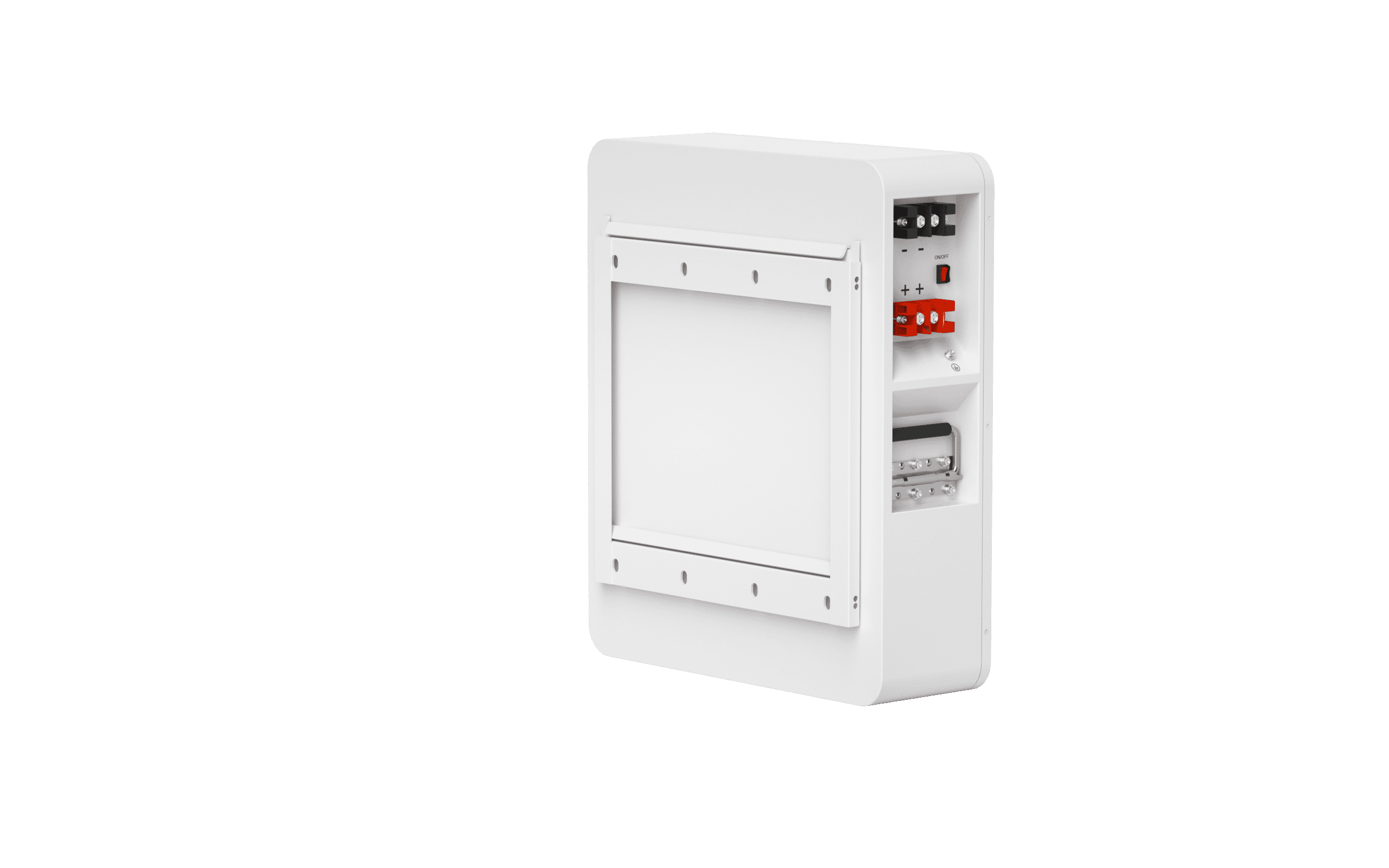

| Terminal | OEM |
