Lithtech 12.8V 100Ah LiFePo4 Battery Pack

Factory directly sales, Supports Retail and Wholesale
Fast Charging & Turbo-Boost Technology
Support 1C charging & discharging, with Lithtech Turbo-Boost technology, the system can output 2.6C power for nonlinear load application.
Ultra-Safety
Full range of protection, up to 18 electronic protection in Lithtech smart BMS, plus with aerosol fire extinguishing system(optional).
Support 4s4p Expanding
Battery system support up to 4 series and 4 parallel expanding.
Strong Compatible Ability
Can compatible with most of mainstream inverter brands in the market such as Deye, Growatt, Magarevo, Victron, SRNE etc.
Long Life A Class LFP Battery
Original top brand battery cell, long life, minimum 5 years maintenance free
Certification: CE/UL1973/UN38.3

Electrical Characteristics	Nominal Voltage	12.8Volt
	Nominal Capacity	100Ah
	Energy	1280Wh
	Internal Resistance	45≤mΩ
	Cycle Life	6000 Cycles
	Months Self Discharge	≤3.5% per month at 25℃
Standard Charge	Charge Voltage	14.2V~14.6V±0.2V
	Charger Current	50A
	Max.Charge Current	100A
Standard Discharge	Discharge Current	80A
	Max. Continuous Current	100A
	Peak Current	260A(＜3S）
	Disxcharge Cut-off Voltage	9.0V
Environmental	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Disxcharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP67
Mechanical	Cell & Method	LFP/AL-100AH, 4S1P Plastic
	Plastic Case	ABS

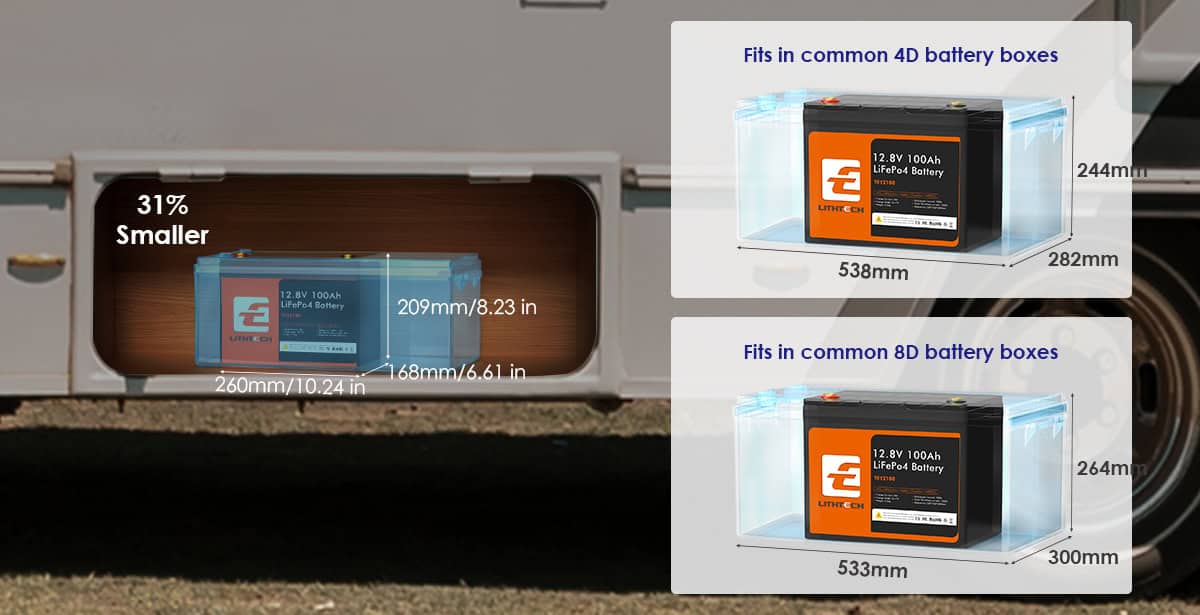

	Dimension(LWH)	260168209mm
	Weight	Approx.11kg
	Terminal	M8
