TE12100
| Electrical Characteristics | Nominal Voltage | 12.8Volt |
| Nominal Capacity | 100Ah | |
| Energy | 1280Wh | |
| Internal Resistance | 45≤mΩ | |
| Cycle Life | 5000 Cycles | |
| Months Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charge | Charge Voltage | 14.2V~14.6V±0.2V |
| Charger Current | 50A | |
| Max.Charge Current | 100A | |
| Standard Discharge | Discharge Current | 80A |
| Max. Continuous Current | 100A | |
| Peak Current | 260A(＜3S） | |
| Disxcharge Cut-off Voltage | 9.0V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP67 | |
| Mechanical | Cell & Method | LFP/AL-100AH, 4S1P Plastic |
| Plastic Case | ABS | |
| Dimension(L*W*H) | 260*168*209mm | |
| Weight | 10kg | |
| Terminal | M8 |
Inside the Lithtech 12V 100Ah LiFePO4 Battery Pack
Carefully crafted in every detail to deliver a flawless product.
60% Lighter Than Traditional Lead-Acid Batteries

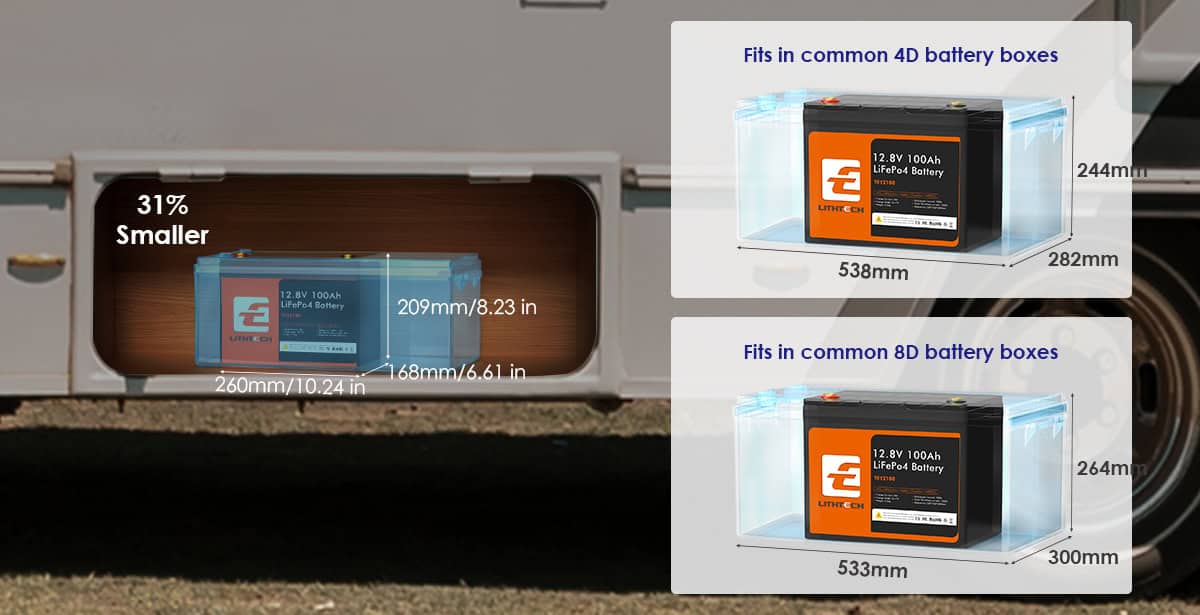

31% Smaller, Same Powerful Capacity
Delivers the same 100Ah performance in a much more compact size—fits standard 4D and 8D battery boxes with ease.
Take It Anywhere. Power Every Adventure.
Built tough for the outdoors—water, dust, and rugged terrain. Wherever you go, Lithtech goes with you.
Cold Weather? No Problem.
Optional built-in heating module keeps your battery working safely in freezing conditions—extending lifespan and reliability.
Flexible Series & Parallel Configuration, Unlock Greater Possibilities

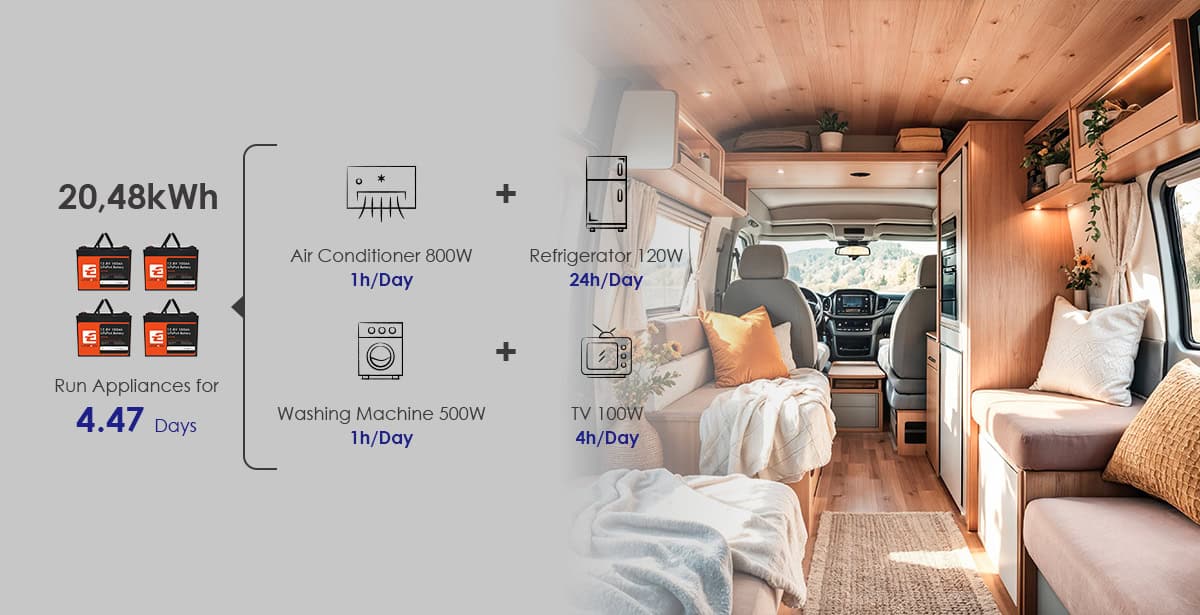

Expandable up to 20.48kWh capacity
Up to 4.47 Days of Off-Grid Power
Enough to run your AC, refrigerator, washer, and TV—perfect for RVs or cabins.
Power Versatility for Every Scenario
From fishing and off-road trips to workshops and RVs—built to adapt wherever you go.
Certified for Global Safety Standards
Fully compliant with CE, MSDS, UN38.3, and more—trusted for worldwide deployment.
Smart Control with Bluetooth & App Integration
Lithtech’s custom Bluetooth system with dedicated App—available on iOS & Android for seamless, wireless battery management.
