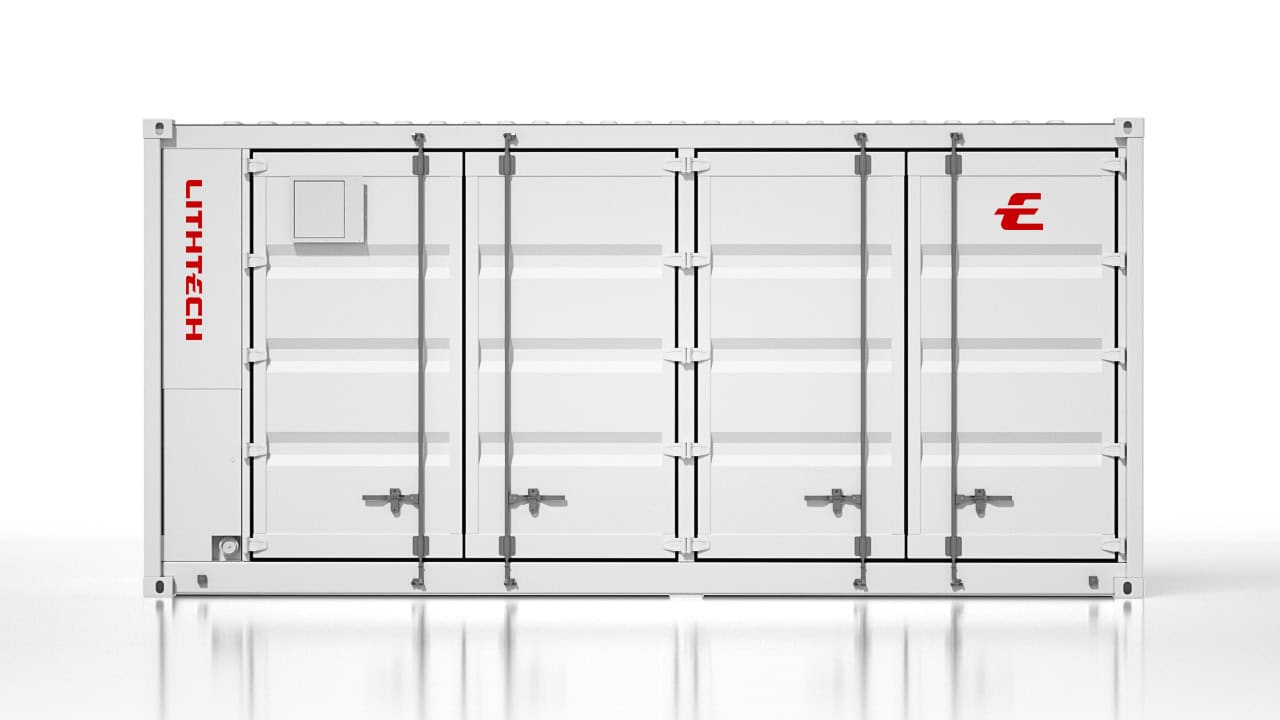

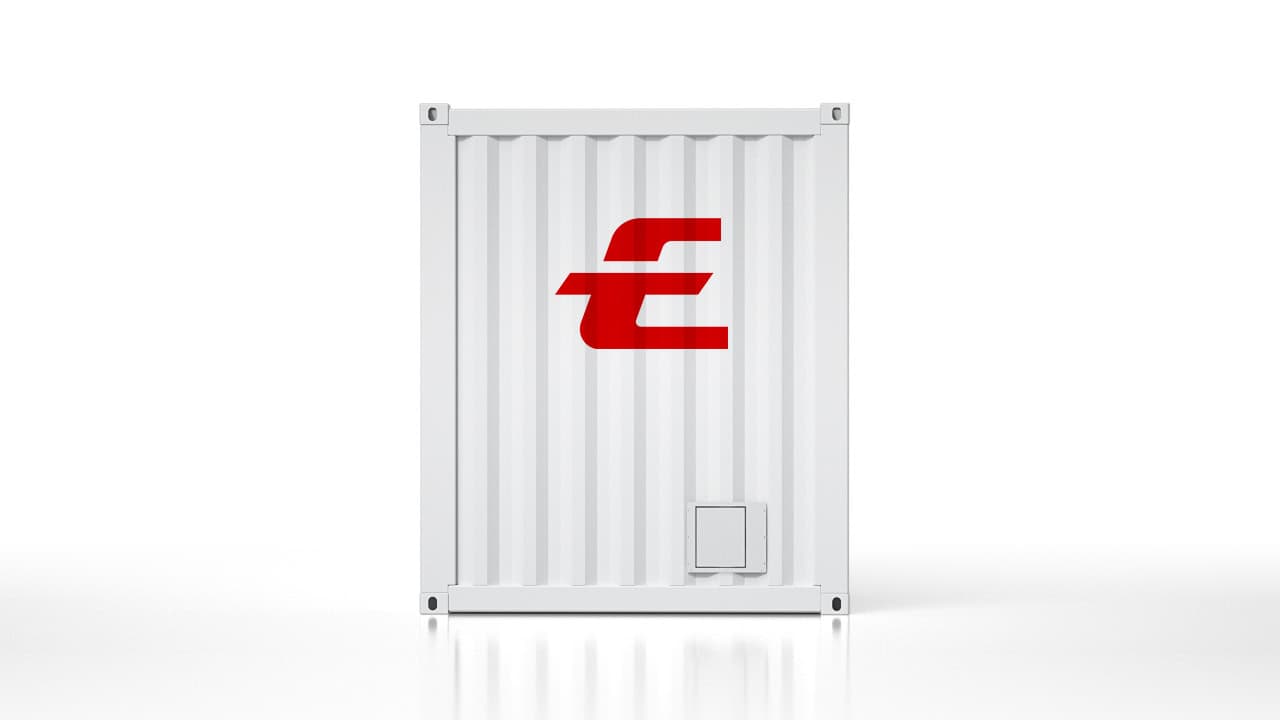

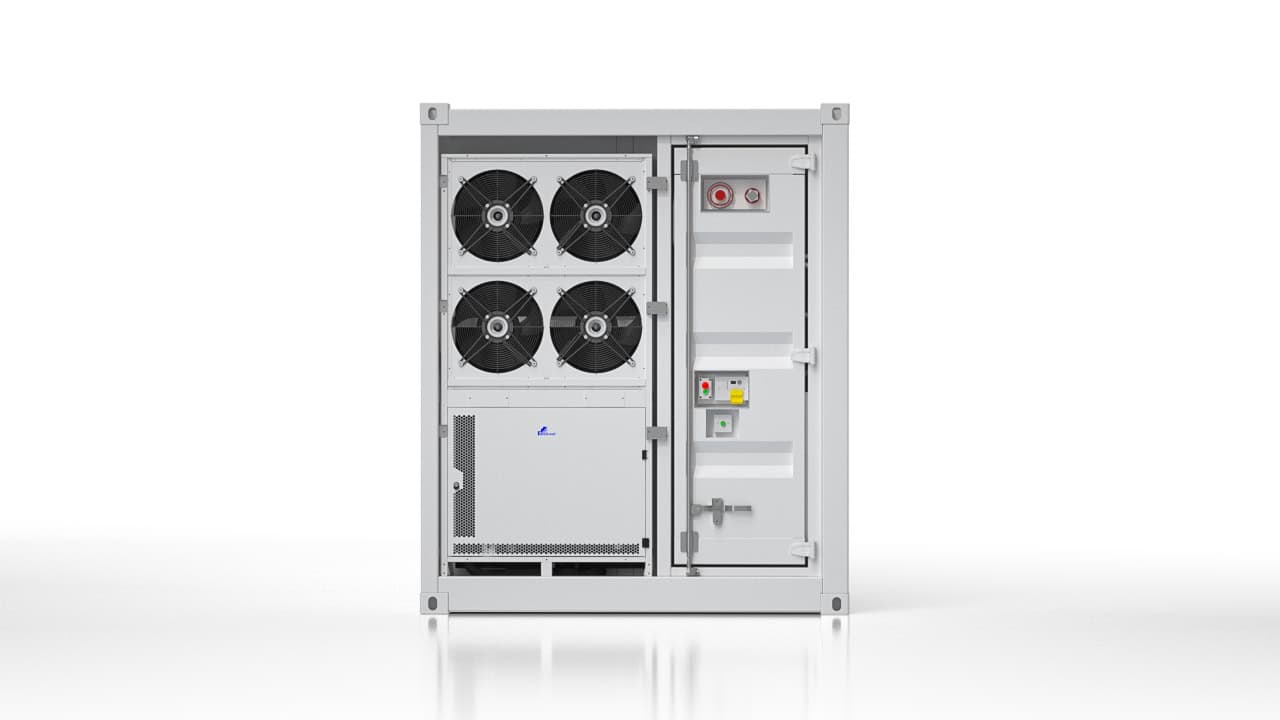

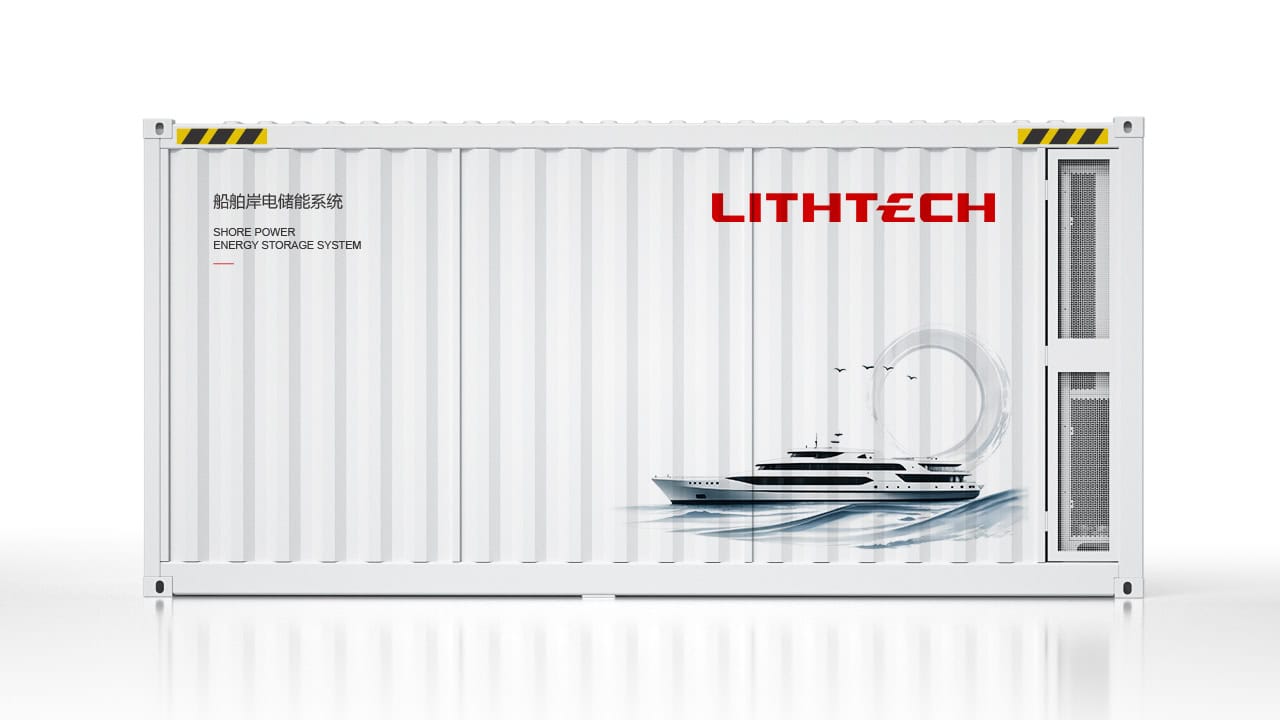

Blue Whale 1.0

Extreme Safety, LFP chemistry with single-cell thermal runaway protection and a 3-level safety architecture.
Super Performance, Designed up to 1500VDC with 2C/3C charge/discharge and over 20-year service life.
Reliable Stability, Aluminum-extrusion strength with shock-proof build and intelligent monitoring & control.
Quick Deployment, Flexible modularized design for simplified installation and service.

Technical Specifications

${monthNames[month]}

Performance Specifications
Performance Specifications	C-Rate-(Discharge / Charge), Maximum support for 3C (30S), continuous 0.5C
System Specifications
Nominal Voltage	1331.2V
Nominal Capacity	3140Ah
Nominal Energy	3340kWh 3760kWh 4180kWh 5015kWh
System Configuration	8P416S 9P416S 10P416S 12P416S
Energy Density	110Wh/kg
Cycle Life	≥8,000 Cycles(70% SOH)
Dimensions[LWH]	6058(L) x 2438(W) x 2896(H) mm
Weight	≈31.1T ≈34.3T ≈37.5 ≈43.9T
Safety Specifications
Thermal Runaway Anti-Propagation	3-level safety architecture, active safety (BMS+EMS)+passive safety (aerosol+independent exhaust channel)
Disconnect Circuit	Hardware-based fail-safe for over-temperature and over-voltage
Short Circuit Protection	Fuses included on pack level
Emergency Stop Circuit	Hard-wired
Ground Fault Detection	Integrated
Disconnect Switchgear Rating	Full Load
General Specifications
Cooling Method	Liquid
Communication	RS485, Ethernet, CAN
Waterproof	IP54 (System) / IP65 (Module)
Certification	IEC 61000-6-2 / 61000-6-4 / 62477-1 / 62619 / UN3536
Warranty	5 Years / 10 Years (Optional)
